How To Bypass Safety Switch On Kubota Tractor
kenlip
New member
Equipment
MX5100, Challenger Loader, Pallet forks,
- #1
I am loath to permanently disable the condom switch, but definitely need a way to stand up while using the forks and when hitching the FEL implements. Trying to press down on the seat with ane knee while trying to control the hydrostatic pedal with the other foot was not fun. So, in desperation I came upwards with this hack and it has been working perfectly.
The ends of the bungee are fixed to the tractor. I pull the bungee over the backrest when I demand to stand, and slip it off one time I am ready to drive the tractor seated.
I am thinking of calculation a tennis ball in the centre of the bungee - it will exist a definite physical reminder to me when I sit downward and lean back against the backrest.
Terminal edited:
- #two
Just unplug the seat switch on the bottom of the seat and utilize a jumper wire to bypass the switch.....................easey peasey !!!!!!
Reactions: 1 users
kenlip
New member
Equipment
MX5100, Challenger Loader, Pallet forks,
- #3
Easy peasy, but permanent . !!!!!!
Even 'easier-peasier' would be to just use a cable tie to hold the switch lever downwards.
I wanted a solution that would permit me to represent the intricacies of engaging the forks in pallets and hitching implements to the FEL, while existence able to have the safety switch engaged when I saturday down as was moving the tractor over more just a few metres/feet.
Reactions: 1 user
torch
Well-known member
Equipment
B7100HSD, B2789, B2550, B4672, RC54-71B, 48" cultivator, homemade FEL and Cab
- #4
What well-nigh an electronic solution? A momentary contact button on the dash which engages a relay to bypass the seat switch, that in turn is disengaged when you sit back downwards over again? Perhaps with a alert beeper or buzzer when the bypass is agile?
kenlip
New member
Equipment
MX5100, Challenger Loader, Pallet forks,
- #five
That was my original thought. I started investigating whether, when the seat was vacated, the switch opened to cease the flow of current or if information technology closed to ground the circuit. As I lifted the seat to start to check things out it occured to me that I could have the trouble solved in nearly 30 seconds, using a $i bungee cord. At that indicate, the electronic options lost a lot of entreatment.
Reactions: one user
i7win7
Well-known member
Equipment
BX2370, B2650 grapple, tree puller, trailer mover, 3 point hoist, mower, tiller
- #half dozen
FEL implements sitting atop some pallets are much easier to connect
- #seven
So, yous don't proceed the bungee there, merely when you need to stand up?
mikester
Well-known member
Equipment
M59 TLB
- #8
I've been thinking of calculation one of these countdown timer switches to the seat circuit in parallel with the seat switch. Press once if I need to exercise something at the edge of my seat and take it automatically reset afterward say 1 minute.
Reactions: 1 user
kenlip
New fellow member
Equipment
MX5100, Challenger Loader, Pallet forks,
- #9
True. But I still discover that I need to stand to be able to meet the couplings.
kenlip
New member
Equipment
MX5100, Challenger Loader, Pallet forks,
- #10
Right. The ends of the bungee are stock-still to the tractor. I pull the bungee over the backrest when I need to stand up, and slip information technology off once I am set up to drive the tractor seated. That is why I am thinking of adding a tennis ball in the center of the bungee - it will be a definite concrete reminder to me when I sit downward and lean dorsum against the backrest.
- #11
just be real conscientious with the bungee ! They practice Not like the sun and will fly apart existent FAST. Perhaps the cease only whacks you Just you lot could lose your balance and oopsy....trip to infirmary...
GeoHorn
Well-known member
Equipment
M4700DT, LA1002FEL, Ferguson5-8B Compactor-Roller, 10KDumpTrailer, RTV-X900
- #12
Imagine my pleasure when I bought my '96 M4700 and found that it never had a seat-switch at all.
Why were seat switches considered necessary? Considering people were starting their tractors without being mounted on the seat and running themselves-over with the tractor. The neutral-start switch takes care of that.
If I had a tractor with the seat switch...unless a mid-mount mower type.... I"d disable information technology permanently.
Henro
Well-known member
Equipment
B2910, BX2200, KX41-2V mini Ex.
- #13
Imagine my pleasure when I bought my '96 M4700 and found that information technology never had a seat-switch at all.
Why were seat switches considered necessary? Because people were starting their tractors without being mounted on the seat and running themselves-over with the tractor. The neutral-beginning switch takes care of that.
If I had a tractor with the seat switch...unless a mid-mount mower type.... I"d disable information technology permanently.
Why the MMM caveat? Neither of my tractors has a seat switch, and both have mid PTOs. Cannot imagine why I would want a seat switch on either of them... MMM on the BX...Do not use the mid PTO on the B2910.
GeoHorn
Well-known member
Equipment
M4700DT, LA1002FEL, Ferguson5-8B Compactor-Roller, 10KDumpTrailer, RTV-X900
- #14
I have a lawn tractor/mower also and information technology has a seat switch which I take never disabled because to do and so would permit the blades to be turning while mounting/dis-mounting and I don't like the idea that some twenty-four hours my grandkids might endeavor to utilise it. That was my thinking every bit regards a seat switch.
A mid-PTO Compact tractor may not take that effect.... I don't know because I don't have one. But if leaving the seat allows the blades to go on rotating on a mid-mount-mower.... I'd recall that'd be a bad idea. YMMV
johnjk
Well-known member
Equipment
B3200 west/loader, Wood RC5 brush hog, iv' box blade, tooth bar, B1700 MMM,
- #15
My old B1700 has 3 switches that need to exist closed for it to beginning. Once she is running, you lot tin can get off it with everything spinning including MMM. No seat switch. My B3200 was purchased used and had the seat switch jumped out. If I call up the previous owner'southward married woman was petite and information technology would proceed shutting off when she scooted frontward to achieve the pedals and that is why they traded it in.
dirtydeed
Well-known member
Equipment
B2650 BH77, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder
- #16
This was my solution to the problem of needing to stand occasionally while using the forks...I'd call it semi-permanent.

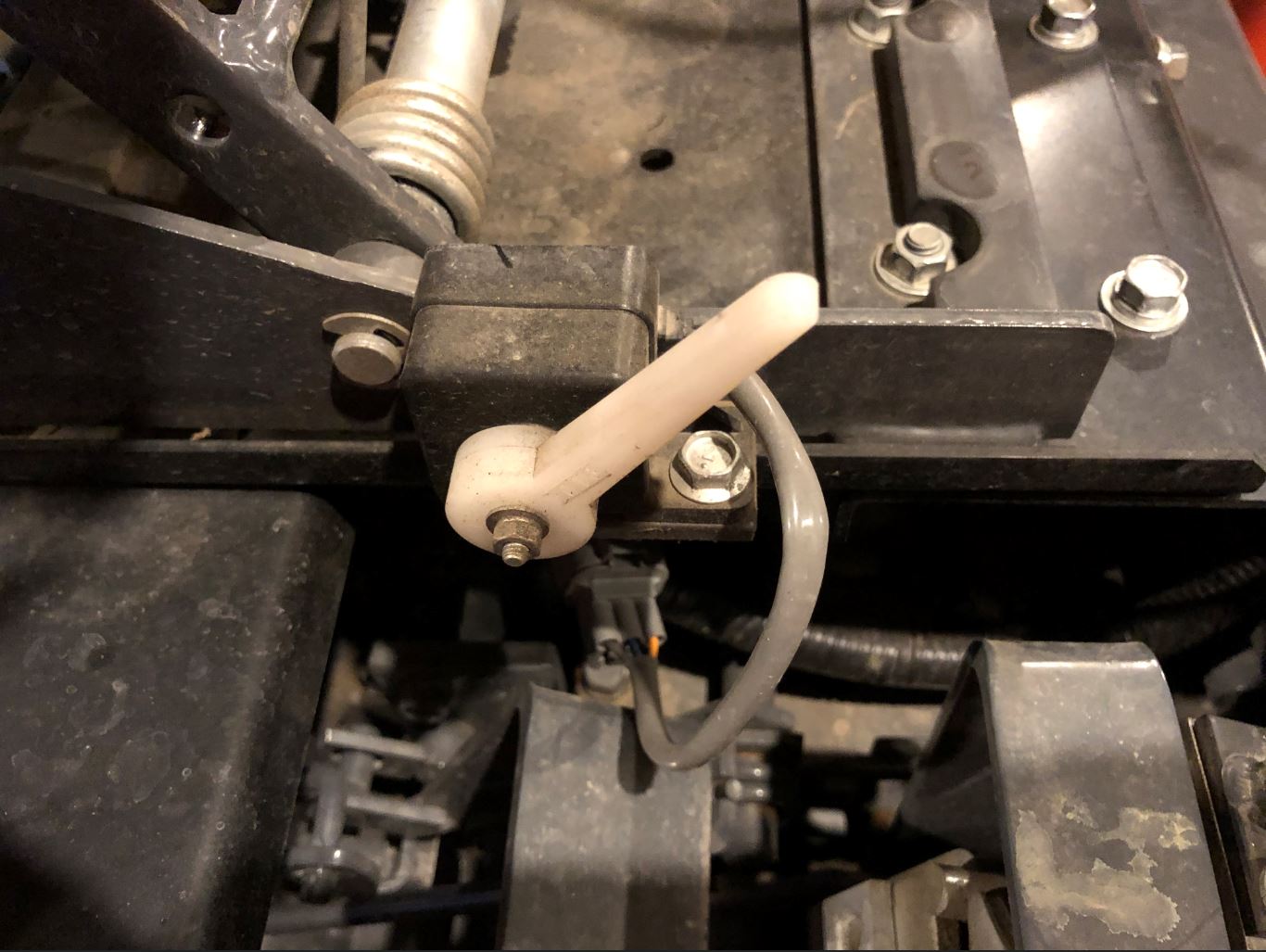

Normal position:

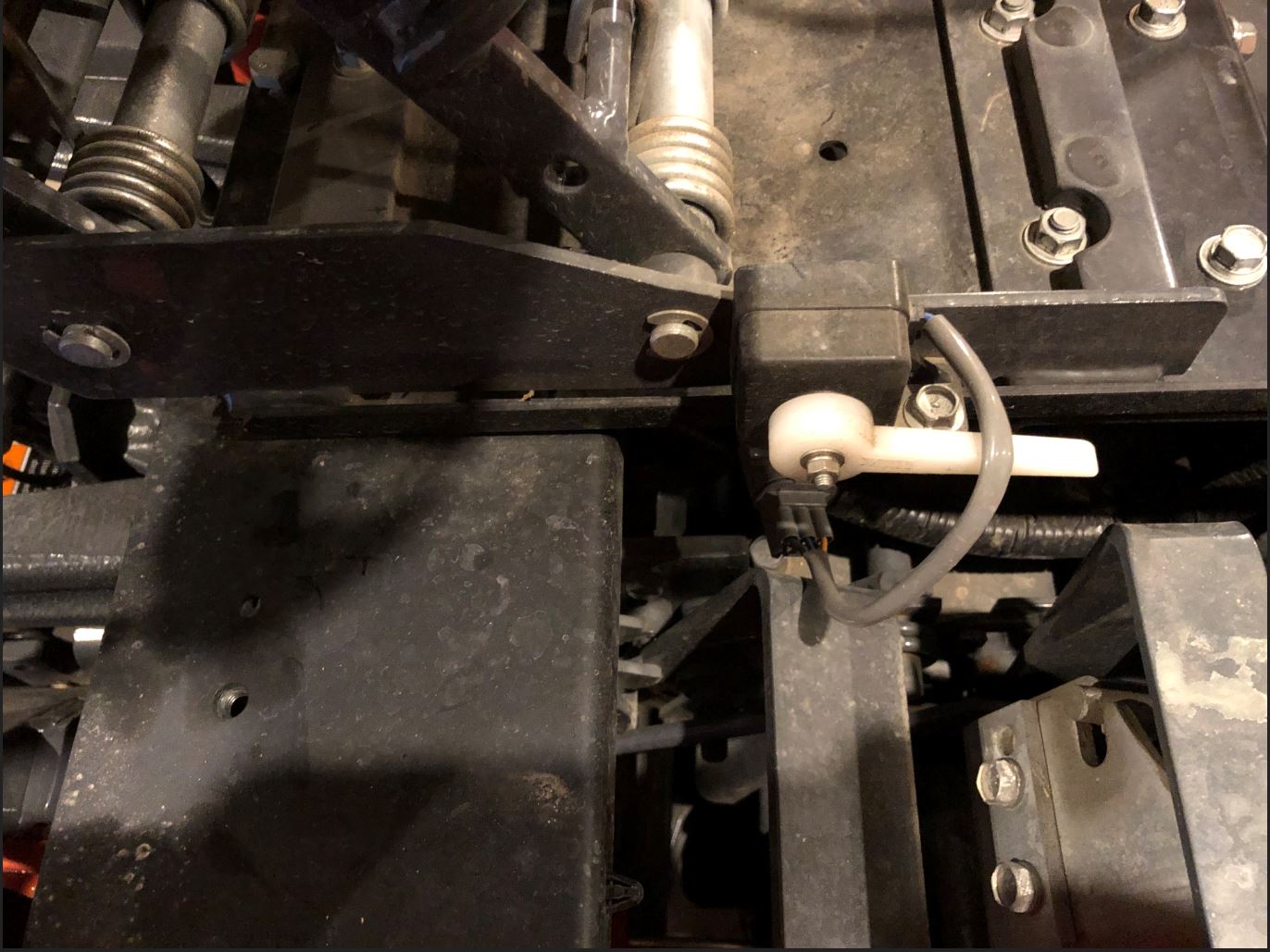

"stock-still" position:
